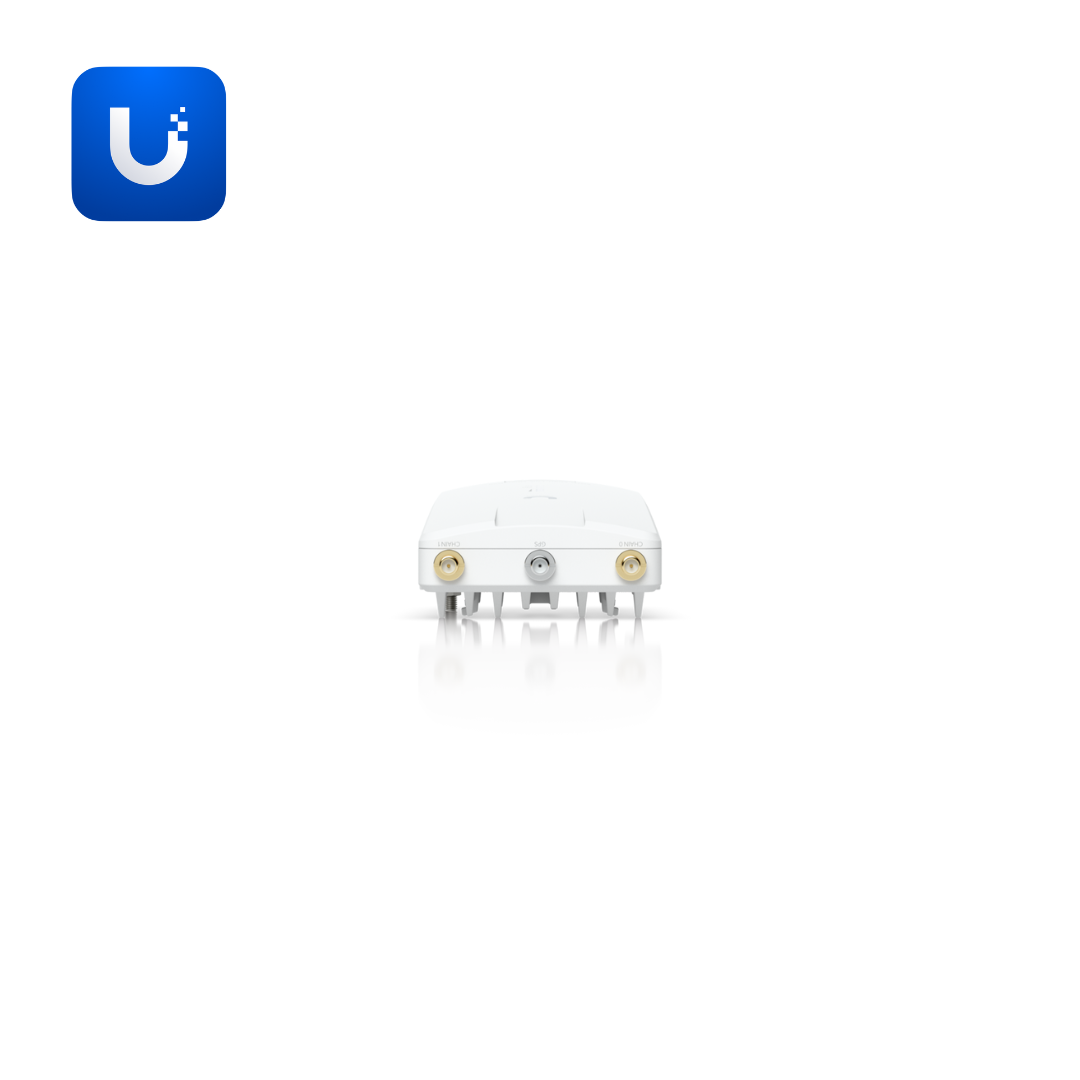

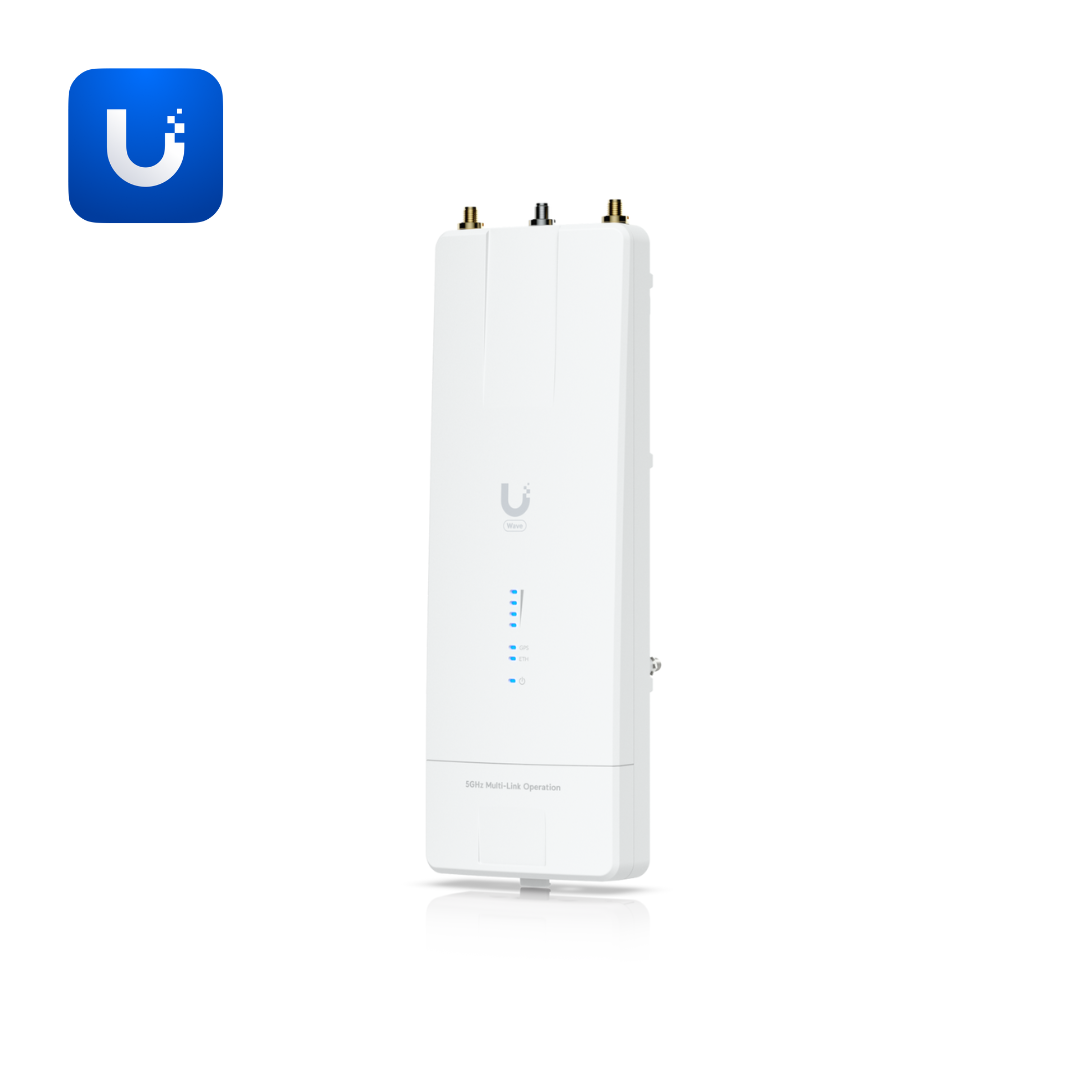

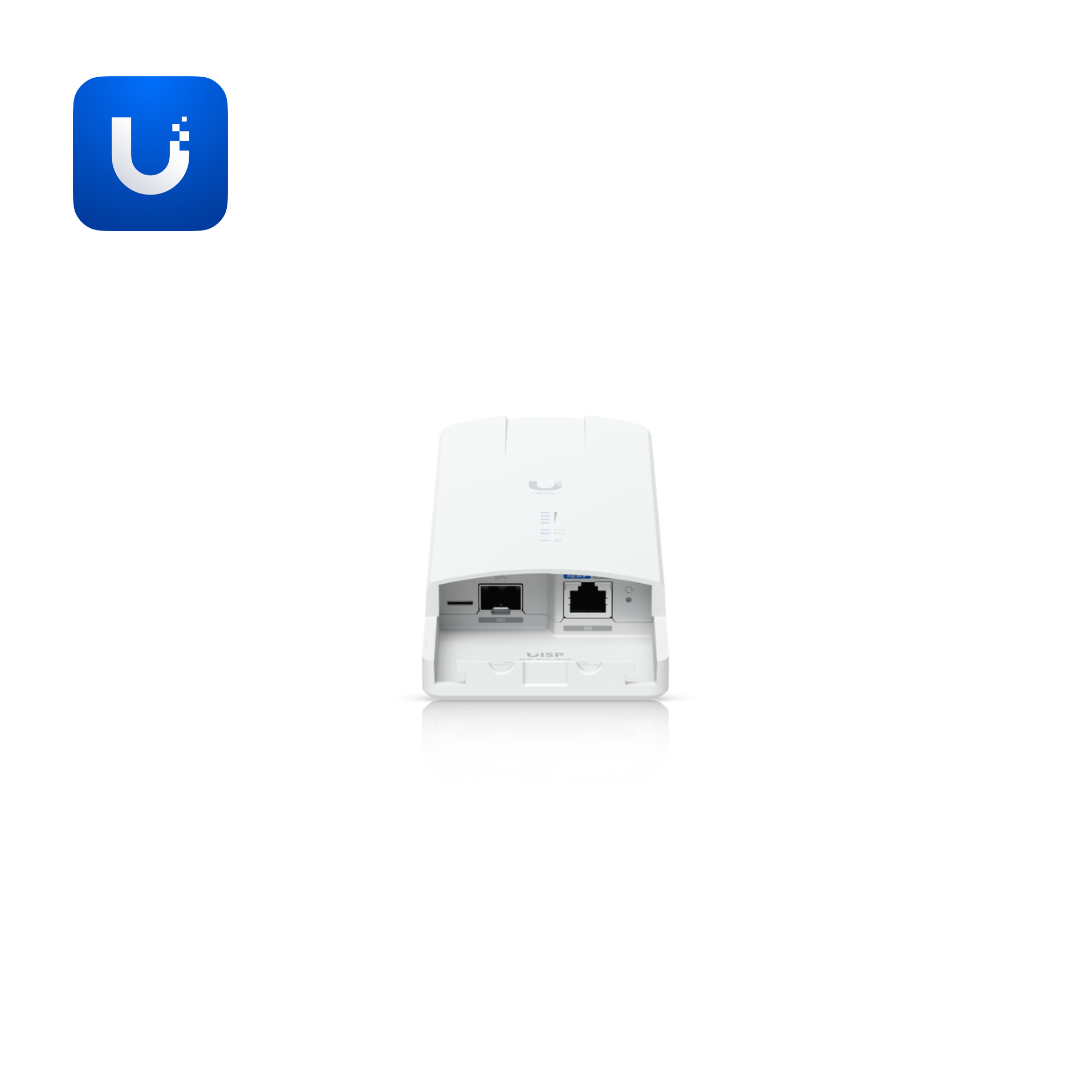

Wave MLO5

The Wave MLO5 (Wave-MLO5) is a **high-performance point-to-point wireless bridge** featuring dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology. This PtP wireless system delivers 5+ Gbps total throughput with 100+ km (62.1 mi) maximum range over 5 GHz bands (5180-5320 MHz, 5500-5700 MHz, 5745-5825 MHz). The 2x2 MIMO on both 5 GHz radios with channel bandwidth support of 20/40/80/160 MHz on Radio 1 and 20/40/80/160/240 MHz on Radio 2 enables flexible deployment. Dedicated spectral analysis radio provides real-time RF monitoring for optimal channel selection.

The Wave MLO5 features a quad-core IPQ5322 processor at 1.5 GHz with DDR4 1 GB memory for high-performance processing. Networking includes 1 × 10 GbE RJ45 port and 1 × 10G SFP+ port for flexible multi-gigabit connectivity. Channel puncturing enables interference avoidance on congested spectrum. Advanced modulation up to 4096QAM (¾, ⅚) maximizes throughput efficiency. 24 dBm max TX power on 5 GHz provides extended range. WPA3-PSK (AES) encryption ensures secure wireless links. Integrated GPS enables precise synchronization.

Operating temperature range of -40°C to 60°C (-40°F to 140°F) and 5-95% humidity tolerance support extreme outdoor conditions. IPX6 weatherproofing protects against powerful water jets for outdoor-exposed installation. Passive PoE support: 4-pairs (1, 2+; 3, 6-; 4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) for 44-54V DC, with 44-54V DC and 22-27V DC voltage range support. Included 54V DC, 0.56A, 10 GbE PoE adapter with 20W max power consumption. 2 waterproof RP-SMA RF connections and 1 waterproof GPS connection enable antenna flexibility. Compatible with airMAX antenna, airFiber X antenna, UISP Dish, and UISP Horn. Compact dimensions of 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9") and 575 g (1.3 lb) weight.

Ideal for long-distance wireless backhaul, enterprise point-to-point links, ISP infrastructure, campus connectivity, building-to-building bridges, remote site connectivity, and high-throughput wireless applications requiring WiFi 7 MLO technology with 5+ Gbps throughput and 100+ km range.
