UISP Router

The UISP-R (UISP Router) is a compact 8-port Gigabit PoE ISP router purpose-built for MicroPoP applications — delivering 27V passive PoE to power field devices, traffic shaping for bandwidth management, automated customer suspension, and OSPF routing for scalable East African ISP network infrastructure. Measuring 210.4 × 95 × 29 mm (8.3 × 3.7 × 1.1") and weighing 600 g (1.3 lb), the UISP-R features a polycarbonate enclosure and is powered by an included external 27V DC 4.4A power adapter (24–28V DC supported range). Powered by a dual-core 880 MHz MIPS1004Kc processor with 512 MB DDR3 memory and 512 MB NAND flash storage. Requires UISP version 1.4.0 and later.

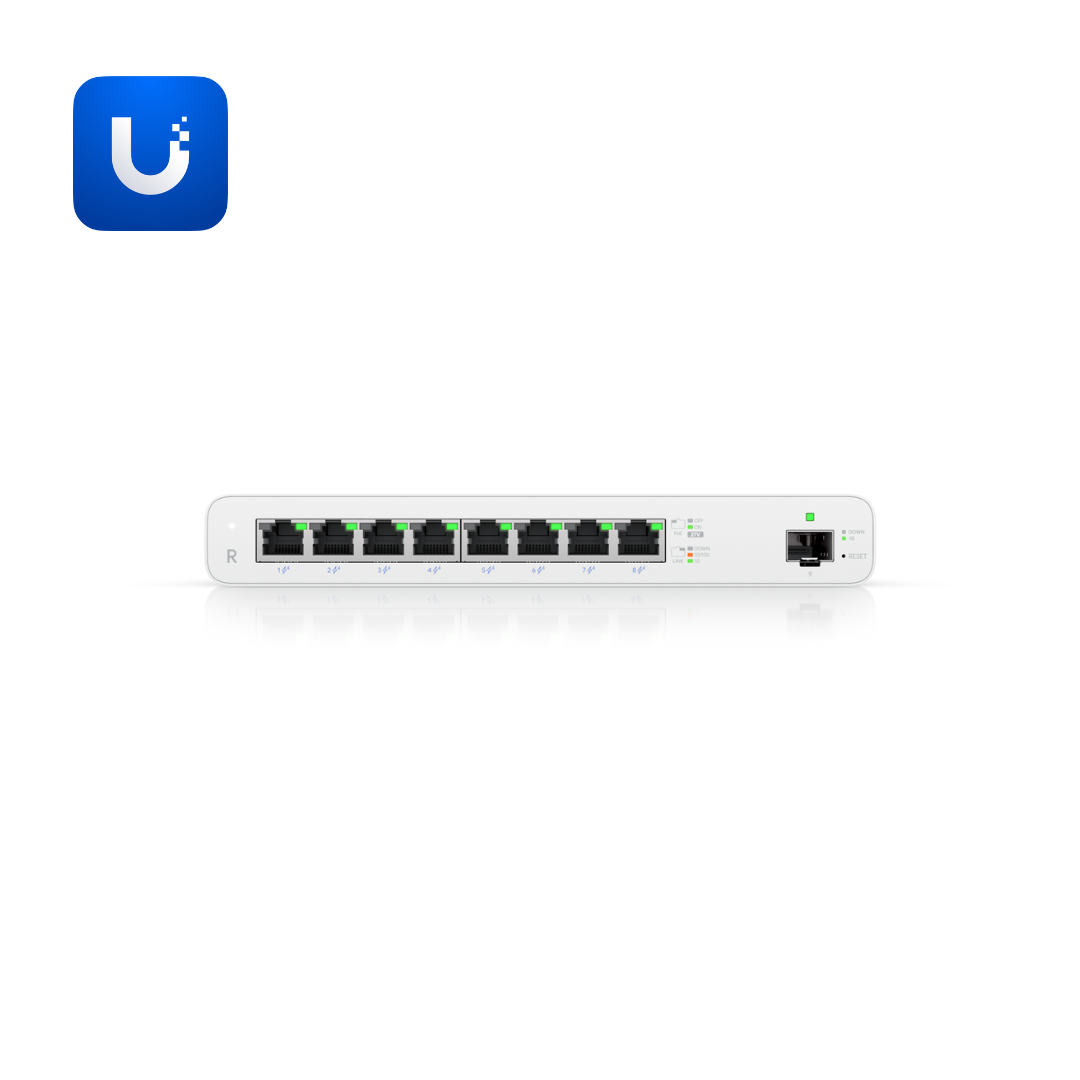

The UISP-R provides (8) GbE RJ45 ports with 27V passive PoE in both 2-pair (15W per port) and 4-pair (30W per port) modes delivering 110W total PoE availability, alongside (1) 1G SFP port. ±15kV air and ±8kV contact ESD/EMP protection. Management via Ethernet in-band and Bluetooth BLE.
Additional specifications:

• Max. power consumption: 10W excluding PoE output
• PoE voltage range: 27V DC (2-pair pins 4,5+/7,8- or 4-pair pins 1,2,4,5+/3,6,7,8-)
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Operating humidity: 5–95% non-condensing
• LED indicators: system status, RJ45 PoE/speed/link/activity, SFP link/activity
• CE, FCC, and IC certified, fully NDAA compliant

Ideal for MicroPoP ISP deployments, WISP customer management, large-scale secure network infrastructure, and distributed ISP routing across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 8-port Gigabit PoE routing with 27V passive PoE, 110W total PoE availability, traffic shaping, automated customer suspension, OSPF routing, firewall, and UISP management.
