The
RG-RAP62-OD is a
high-performance outdoor Wi-Fi 6 access point engineered for reliable wireless deployments in challenging outdoor environments. This
802.11ax AX3000 outdoor AP features
dual-radio design with 2×2 MU-MIMO on both 2.4 GHz and 5 GHz bands delivering up to
2,974 Mbps combined throughput: 573 Mbps on 2.4 GHz and 2,401 Mbps on 5 GHz.
Wi-Fi 6 (802.11ax) operation on both bands with backward compatibility to Wi-Fi 5/4 (802.11ac/n/a/b/g) ensures support for all existing devices.
Built-in omnidirectional antennas (6.5 dBi @ 5 GHz, 4.0 dBi @ 2.4 GHz) deliver extended outdoor coverage up to 300 meters @ 5 GHz and 100 meters @ 2.4 GHz (recommended: 200m @ 5 GHz, 50m @ 2.4 GHz) for outdoor venues, campus networks, and open-air facilities.
Advanced modulation support including 1024-QAM, OFDMA, BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM ensures efficient spectrum utilization and maximum throughput.
The
RG-RAP62-OD features
80 MHz channel width support on 5 GHz for optimal throughput, auto/20/40/80 MHz channel flexibility with
PoE+ powered (IEEE 802.3at) for simplified outdoor installation and low operational costs.
IP-rated weatherproof outdoor enclosure withstands harsh environmental conditions including rain, dust, extreme temperatures, and tropical climates across Kenya, Uganda, and East Africa.
Maximum transmit power of 27.7 dBm combined @ 5 GHz and 26 dBm combined @ 2.4 GHz (single-stream: 23 dBm, region-specific) ensures strong signal penetration and extended coverage.
Compact form factor with 70mm × 35mm × 200mm dimensions and lightweight ≤0.4 kg design enables discreet outdoor installation.
Advanced features include MU-MIMO for simultaneous multi-device communication, OFDMA for efficient spectrum utilization, Reyee Mesh technology for self-healing outdoor mesh networks, built-in captive portal for outdoor guest WiFi authentication, VLAN support, QoS, and advanced outdoor RF optimization.
Operating across
multiple frequency bands: 2.4 GHz (2.400-2.4835 GHz) and 5 GHz (5.150-5.850 GHz) with country-specific regulatory compliance supports deployments across diverse international markets.
Management via Ruijie Cloud platform with real-time monitoring, firmware updates, and centralized configuration, Reyee mobile app, or standalone web GUI enables remote multi-site outdoor network administration.
Cloud-managed outdoor Wi-Fi 6 perfect for businesses managing multiple outdoor locations across East Africa.

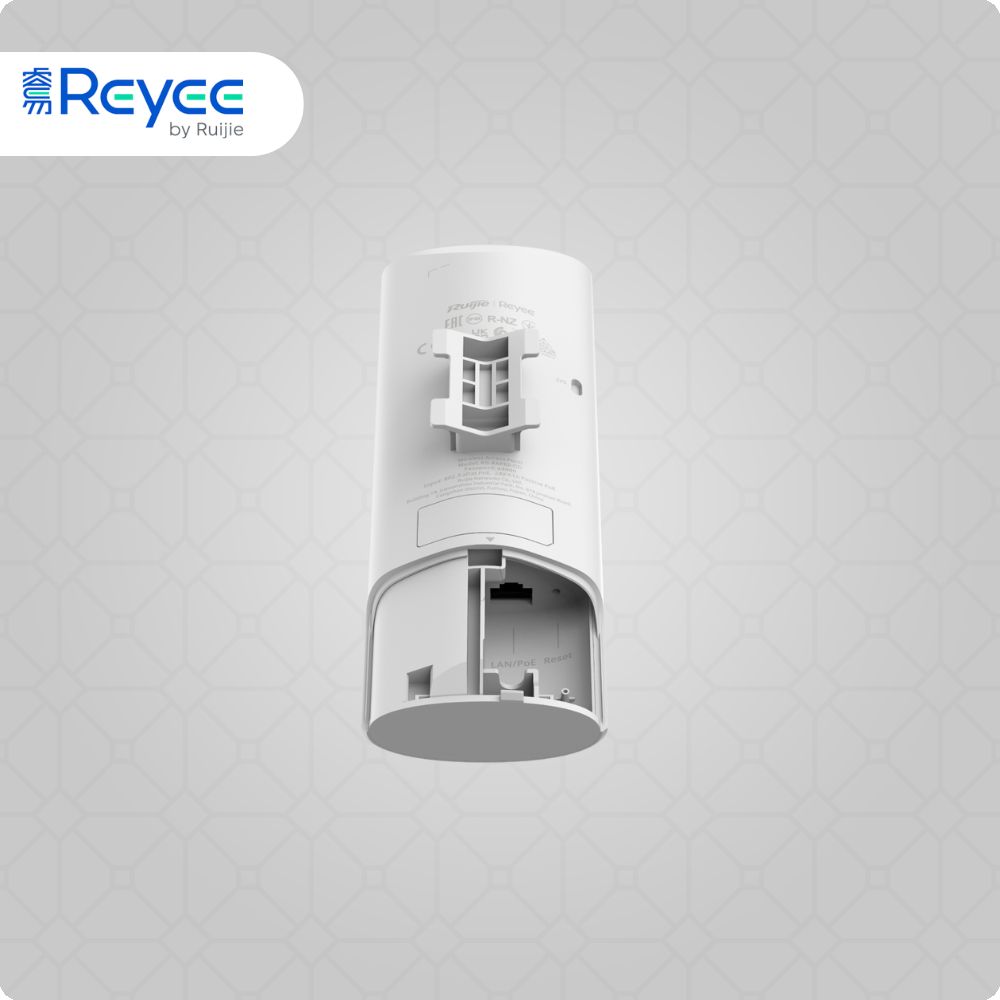

Weatherproof outdoor-rated installation with compact white housing.
NDAA compliant with CE, FCC, and international certifications.
Ideal for
outdoor university campuses and educational grounds, resort properties and hotel gardens, industrial facilities and warehouse yards, parking areas and outdoor facilities, smart city deployments and municipal WiFi networks, outdoor event venues and recreational spaces, transportation hubs and outdoor facilities, government complexes and administrative campuses requiring
high-performance Wi-Fi 6 with AX3000 speeds, extended outdoor coverage (300m @ 5 GHz), weatherproof compact design, built-in omnidirectional antennas, 80 MHz channel support, cloud management, and outdoor mesh networking across East Africa.
✅ IN STOCK
