The
RG-RAP1260 is an
ultra-compact wall-plate Wi-Fi 6 access point designed for hospitality and office single-room wireless deployments. This
802.11ax AX3000 wall-plate AP features
2×2:2 MU-MIMO on both 2.4 GHz and 5 GHz bands delivering up to
2,976 Mbps combined throughput: 573 Mbps on 2.4 GHz and 2,401 Mbps on 5 GHz.
Dual-band operation with backward compatibility to Wi-Fi 5/4 (802.11ac/n/a/b/g) ensures support for legacy devices in hotel rooms and offices.
The
RG-RAP1260 features
5 Gigabit Ethernet ports (10/100/1000BASE-T) with integrated switch functionality, enabling connection of wired devices including IP TVs, VoIP phones, set-top boxes, desktop computers, and IoT equipment without requiring separate switches.
PoE/PoE+ powered (IEEE 802.3af/at) with maximum 12W power consumption enables single-cable installation from PoE switch to wall-plate.
Ultra-compact wall-mount design replaces standard wall plates for clean, professional installation.
Lightweight ≤0.26 kg (0.57 lbs) simplifies mounting.

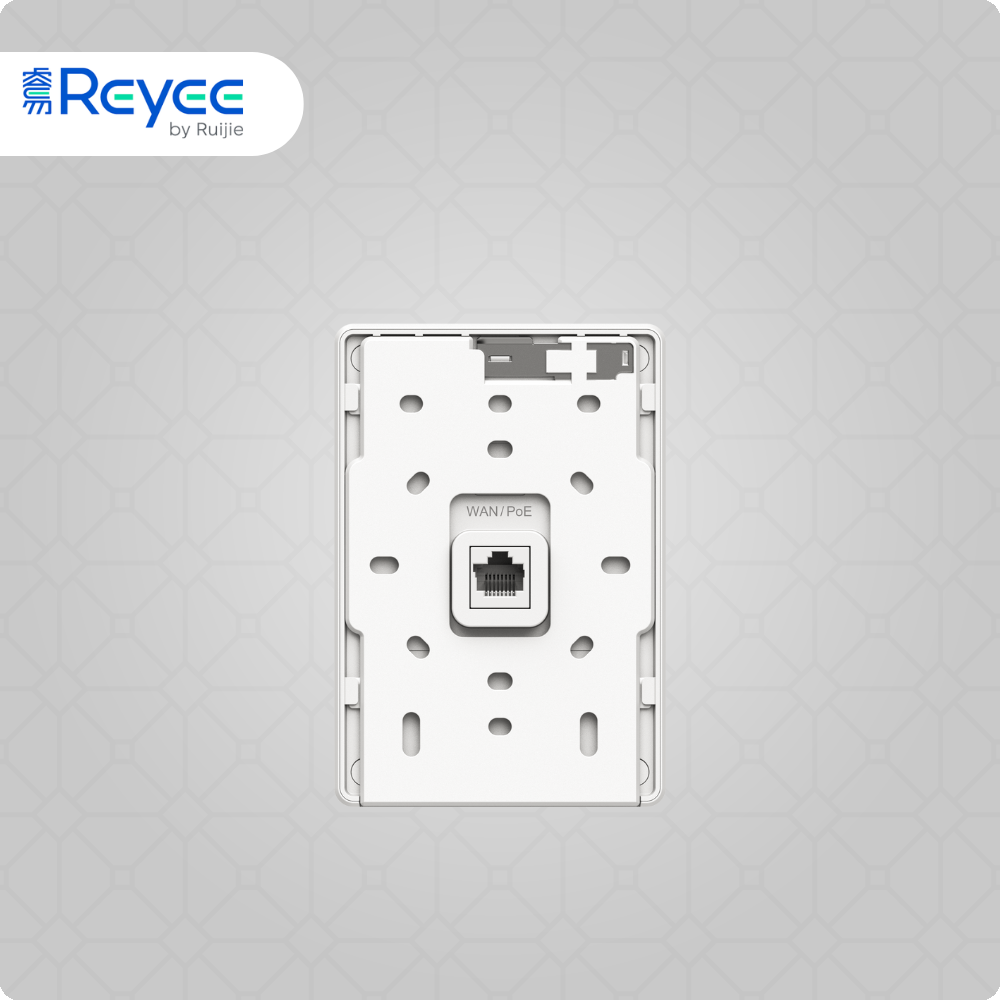

Junction box mounting option provides flexible installation.
IP41 rating offers basic ingress protection.
Operating temperature range of
0°C to 40°C (32°F to 104°F) with
-40°C to +70°C storage temperature and
5-95% humidity tolerance support indoor deployments.
±2 kV surge protection on Ethernet ports for common mode safeguards equipment.
400,000 hours MTBF ensures long-term reliability.
System status LED provides operational visibility.
Reset button enables factory reset.
128 MB Flash memory and 512 MB DDR3 RAM support advanced features.
Management via Ruijie Cloud platform, Reyee mobile app, or standalone web GUI.
CE, FCC, CB, ISED, cTUVus certifications with RoHS compliance.
Ideal for
hotel guest rooms and executive suites, corporate offices and private workspaces, residential apartments and serviced accommodations, hospital patient rooms, medical consultation offices, and single-room deployments requiring
Wi-Fi 6 AX3000 speeds with integrated 5-port Gigabit switch, PoE power, and wall-plate form factor across East Africa.
✅ IN STOCK
