airMAX Rocket Prism 5AC

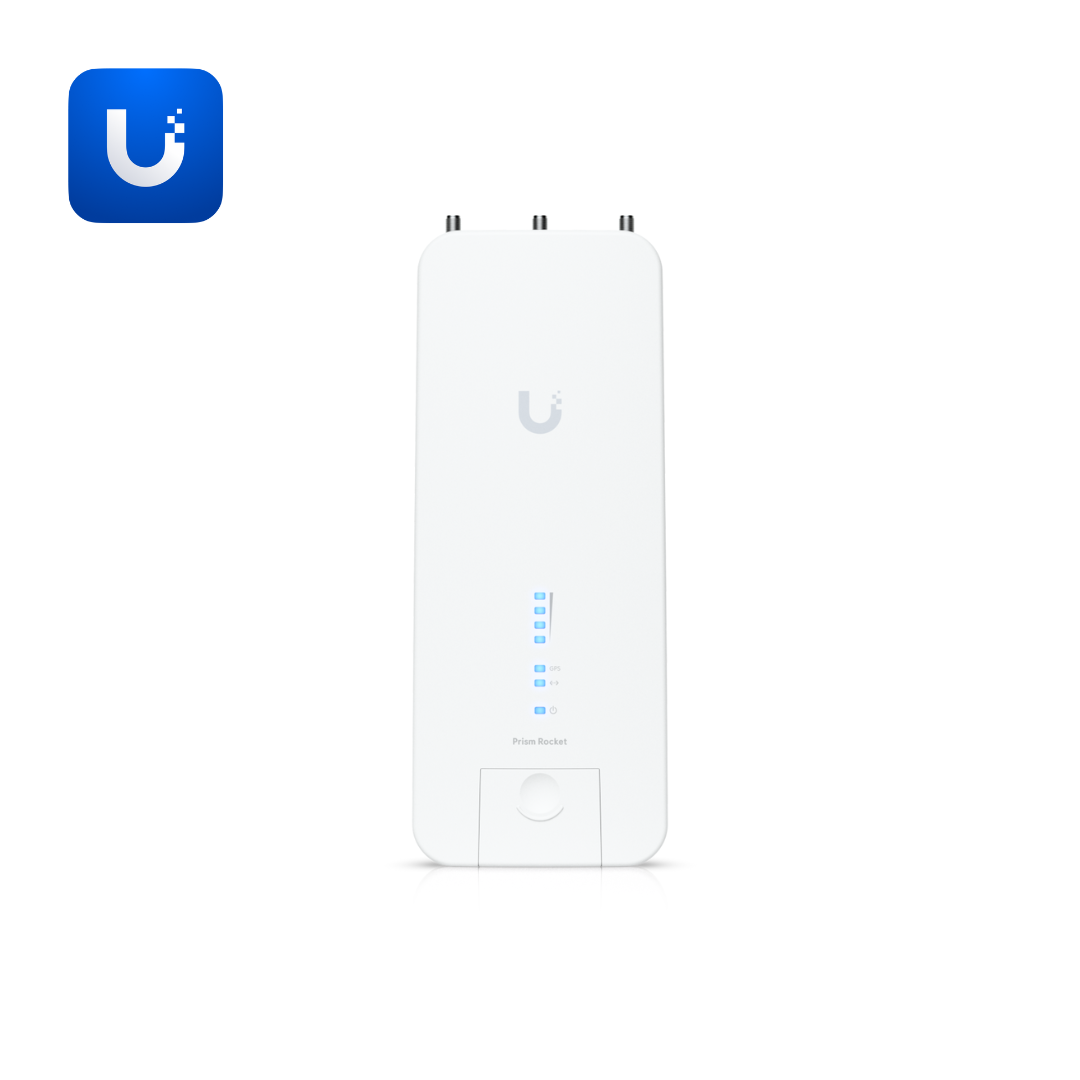

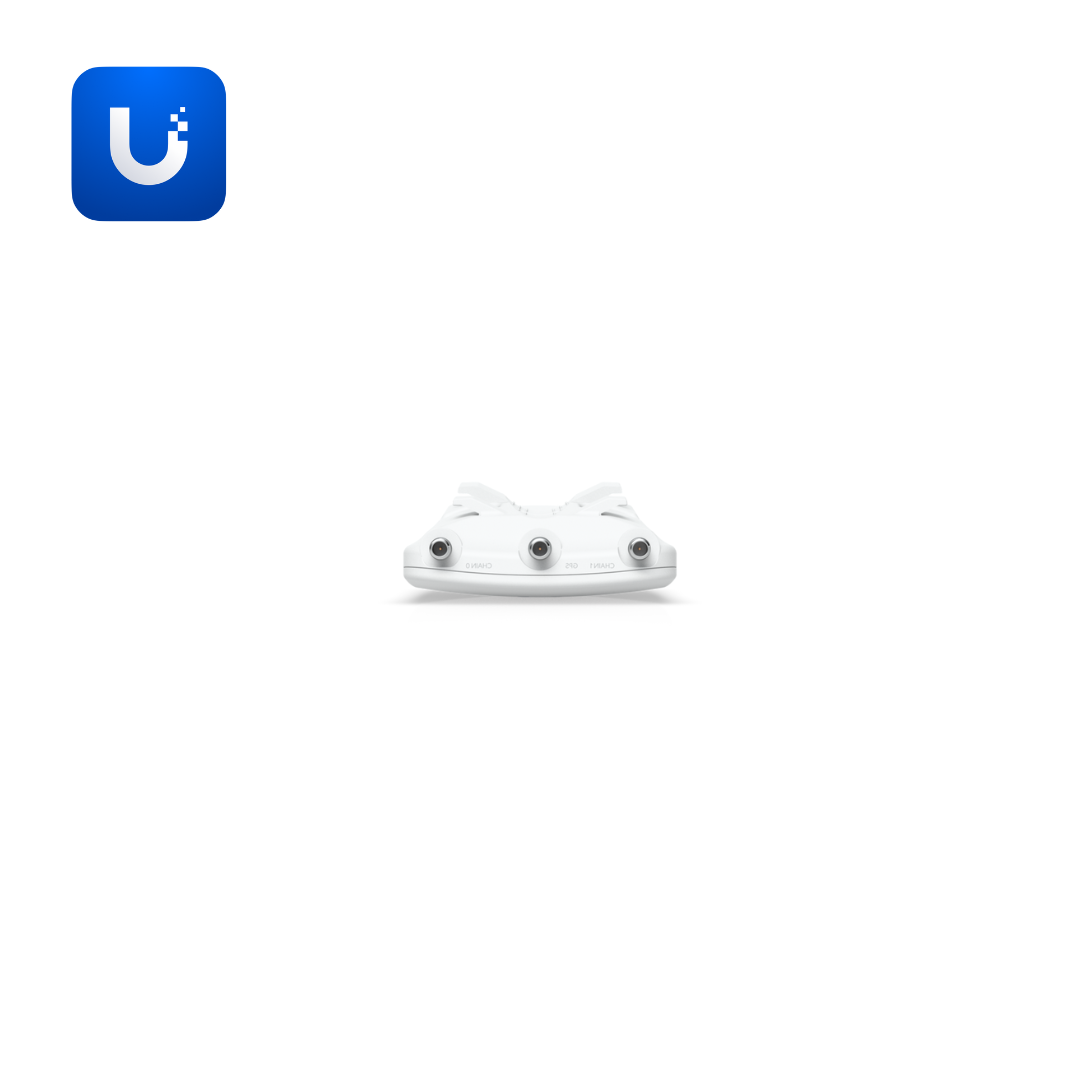

The RP-5AC-Gen2 (airMAX Rocket Prism 5AC) is a high-performance 5 GHz basestation radio featuring the proprietary airPrism active RF filtering technology — a three-stage filtering design that provides superior noise rejection over standard RF filtering, enabling reliable high-throughput PtMP and PtP operation even in high-interference environments common across East African urban and semi-urban tower deployments. In a compact die-cast aluminium enclosure measuring 88 × 40 × 230 mm (3.5 × 1.6 × 9.1") and weighing just 400 g (14.1 oz), the RP-5AC-Gen2 ships with a pole mounting kit included and accepts external sector antennas via (2) RP-SMA waterproof RF connectors. ETSI 300-019-1.4 shock and vibration testing. Operating temperature: -40°C to 80°C (-40°F to 176°F). Fully NDAA compliant.

The RP-5AC-Gen2 operates across 5150–5875 MHz worldwide delivering 500+ Mbps throughput to 50+ simultaneous clients in access point mode. PtP channel sizes of 10/20/30/40/50/60/80 MHz and PtMP channel sizes of 10/20/30/40 MHz with Ubiquiti-specific features including 30/50/60 MHz channels, airMAX ac mode, traffic shaping with burst support, frequency band offset, and Ackless mode. Integrated GPS synchronisation via external magnetic base GPS antenna enables multi-sector co-location without inter-sector interference. The dedicated spectral analysis radio provides real-time RF monitoring. Software features include WPA2 AES security, QoS with WMM, DHCP, NAT, bridging, routing, airMagic, airView, antenna alignment, site survey, ping, traceroute, and speed test. Powered via passive PoE 2-pair at 9.5W maximum (18–27V DC) with included 24V, 1A gigabit PoE adapter. (4) software-adjustable signal strength LEDs corresponding to custom RSSI levels.
Additional specifications:

• Operating modes: access point and station
• Dynamic Ack and Ackless mode distance adjustment
• CE, FCC, IC, and RoHS certified, fully NDAA compliant

Ideal for WISP PtMP infrastructure, enterprise wireless backhaul, campus connectivity, remote site access, ISP base stations, and any deployment across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz 500+ Mbps basestation performance with airPrism active RF filtering, GPS synchronisation, 50+ client capacity, dedicated spectral analysis, and external antenna compatibility.
